TMTECK Ultrasonic 5 Step NDT Step Wedge Calibration Block/Calibration Gage Blocks
| Product: | Step Test Block | Material: | 1018 Steel, Aluminum, Stainless Steel |
|---|---|---|---|
| Step: | 5 | Type: | NDT Accessories |
| Version: | MM, INCH | Function: | Calibration,Testing Calibration Function |
| Package: | Plastic Carrying Case | Color: | Steel |
| High Light: |
ndt step wedge calibration blockUltrasonic Step Wedge Calibration Blockndt 5 Step Calibration Block |
||
5 Step test block Wedge Testing Ultrasonic Test Block 1018 steel/304 stainless steel/Aluminum Ultrasonic thickness gauge
Thickness and linearity calibration. There are five versions of the block available. In accordance with ASTM E797
The 5-Step block Metric version S-5-MM come in thickness of 5mm, 10mm, 15mm, 20mm, 25mm.
Step Face measures 20mm x 20mm.
The 5-Step block Metric version S-5-MM-1 come in thickness of 2.5mm, 5mm, 7.5mm, 10mm, 12.5mm.
Step Face measures 20mm x 20mm.
The 5-Step block Metric version S-5-MM-2 come in thickness of 0.5mm, 1mm, 1.5mm, 2mm, 2.5mm.
Step Face measures 20mm x 20mm.
The 5-Step block Inch version S-5-IN come in thickness of 0.100” , 0.200″, 0.300″, 0.400″, 0.500″.
Step Face measures 0.8” x 0.8”.
The 5-Step block Inch version S-5-IN come in thickness of 0.200” , 0.600″, 0.800″, 1.000”.
Step Face measures 0.8” x 0.8”.
| 5 Step Test Block | ||||

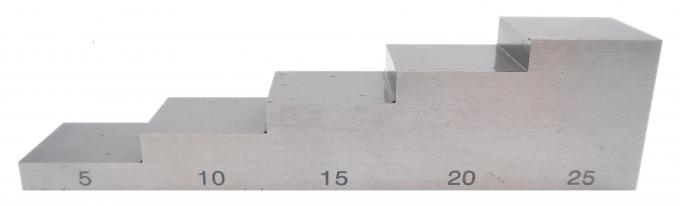

| S-5-MM |  |
MM,1018 steel, 5step test block thickness:5mm/10mm/15mm/20mm/25mm size:100*20mm |
||
| S-5-MM-SS |  |
MM, 304 Stainless Steel, 5step test block thickness:5mm/10mm/15mm/20mm/25mm size:100*20mm |
||

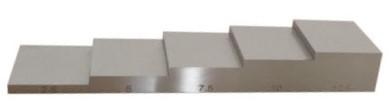

| S-5-MM-1 |  |
MM,1018 steel, 5step test block thickness:2.5mm/5mm/7.5mm/10mm/12.5mm size:100*20mm |
||
| S-5-MM-SS-1 |  |
MM, 304 Stainless Steel, 5step test block thickness:2.5mm/5mm/7.5mm/10mm/12.5mm size:100*20mm |
||

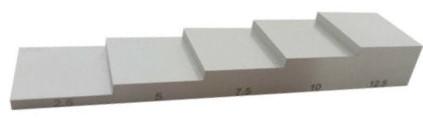

| S-5-MM-AL-1 |  |
MM, Aluminum, 5step test block thickness:2.5mm/5mm/7.5mm/10mm/12.5mm size:100*20mm |
||
| S-5-MM-2 |  |
MM,1018 steel, 5step test block thickness:0.5mm/1mm/1.5mm/2mm/2.5mm size:100*20mm |
||

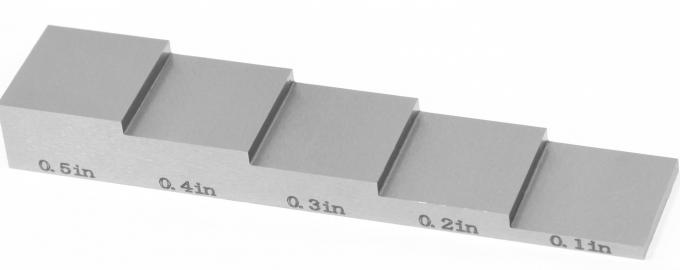

| S-5-IN |  |
INCH,1018 steel, 5step test block thickness:0.100” 0.200” 0.300” 0.400” 0.500” size:4”*0.8” |
||
| S-5-IN-SS |  |
INCH, 304 Stainless Steel, 5step test block thickness:0.100” 0.200” 0.300” 0.400” 0.500” size:4”*0.8” |
||

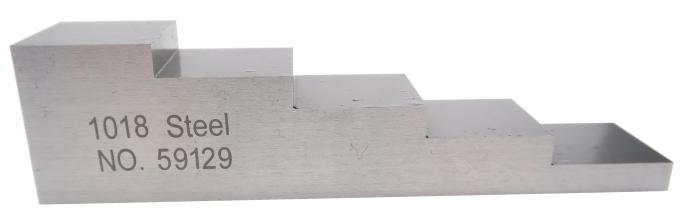

| S-5-IN-1 |  |
INCH,1018 steel, 5step test block thickness:0.200” 0.400” 0.600” 0.800” 1.000” size:4”*0.8” |
||
