TMTECK ASTM E797 7 Step 1018 Steel Ultrasonic Calibration Block
Detail Information
| Product: | Step Test Block | Material: | 1018 Steel |
|---|---|---|---|
| Step: | 7 | Type: | NDT Accessories |
| Version: | MM, INCH | Function: | Calibration,Testing Calibration Function |
| Package: | Plastic Carrying Case | Color: | Steel |
| High Light: |
7 step ultrasonic calibration block1018 steel ultrasonic calibration blockASTM E797 ultrasonic calibration block |
||
Product Description
7 Step test block Wedge Testing Ultrasonic Test Block 1018 steel Ultrasonic thickness gauge
Thickness and linearity calibration. There are two versions of the block available.
The 7-Step block Inch version S-7-IN come in thickness of 0.100” , 0.200″, 0.400″, 0.500″, 0.600″, 0.75″, 1.000”. Step Face measures 0.8” x 0.8”.
The 7-Step block Metric version S-7-MM come in thickness of 1mm, 1.5mm, 2mm, 4mm, 6mm, 8mm, 10mm. Step Face measures 20mm x 20mm.
| Model | PIC | Description |
| 7 Step Test Block | ||

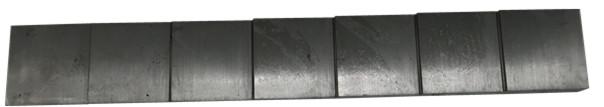

| S-7-MM |  |
MM,1018 steel, 7step test block Thickness:1mm,1.5mm,2mm,4mm,6mm,8mm,10mm size:140*20mm |

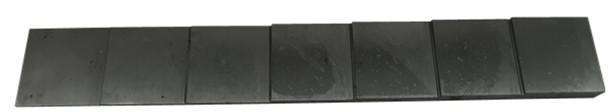

| S-7-IN |  |
INCH,1018 steel, 7step test block Thickness:0.1″, 0.2″, 0.4″, 0.5″, 0.6″, 0.75″, 1″ size:140*20mm |
