TMTECK 6 Step ASTM E797 Ultrasonic Test Block/Ultrasonic Calibration Block
| Product: | Step Test Block | Material: | 1018 Steel, Stainless Steel |
|---|---|---|---|
| Step: | 6 | Type: | NDT Accessories |
| Version: | MM, INCH | Function: | Calibration,Testing Calibration Function |
| Package: | Plastic Carrying Case | Color: | Steel |
| High Light: |
ASTM E797 Ultrasonic Test Block6 step ultrasonic test blockcalibration block for ultrasonic testing |
||
6 Step test block Wedge Testing Ultrasonic Test Block 1018 steel/304 stainless steel Ultrasonic thickness gauge
Thickness and linearity calibration. There are two versions of the block available.

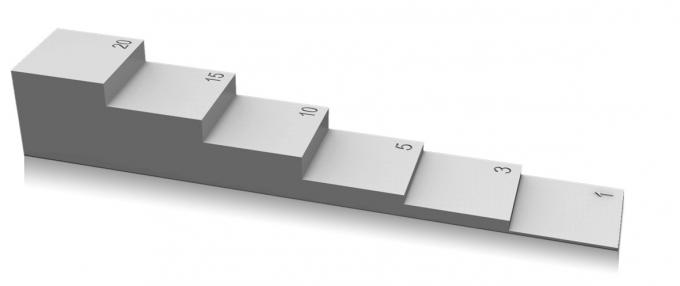

The 6-Step block Metric version S-6-MM come in thickness of 1mm, 3mm, 5mm, 10mm, 15mm, 20mm.
Step Face measures 20mm x 20mm.
The 7-Step block Metric version S-6-MM-2 come in thickness of 2.5mm, 5mm, 10mm, 15mm, 20mm, 25mm.
Step Face measures 20mm x 20mm.
| Model | PIC | Description |
| 6 Step Test Block | ||
| S-6-MM |  |

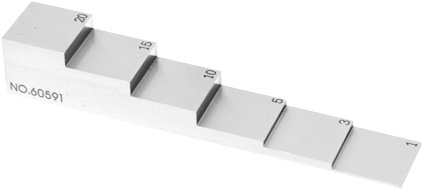

MM,1018 steel, 6step test block thickness:1mm/3mm/5mm/10mm/15mm/20mm size:120*20mm |
| S-6-MM-SS |  |
MM, 304 Stainless Steel, 6step test block thickness:1mm/3mm/5mm/10mm/15mm/20mm size:120*20mm |
| S-6-MM-2 |  |

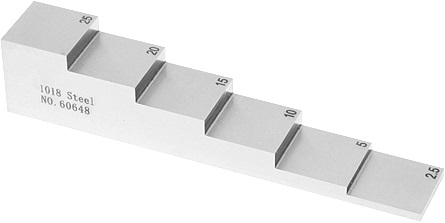

MM,1018 steel, 6step test block Thickness:2.5mm/5mm/10mm/15mm/20mm/25mm size:120*20mm |
