TMTECK 25 50 75 100mm 4 Step Test Ultrasonic Calibration Block
Detail Information
| Product: | Step Test Block | Material: | 1018 Steel, Stainless |
|---|---|---|---|
| Step Thickness: | 25 50 75 100mm | Type: | NDT Accessories |
| High Light: |
step test ultrasonic calibration block100mm ultrasonic calibration blockultrasonic step test calibration block |
||
Product Description

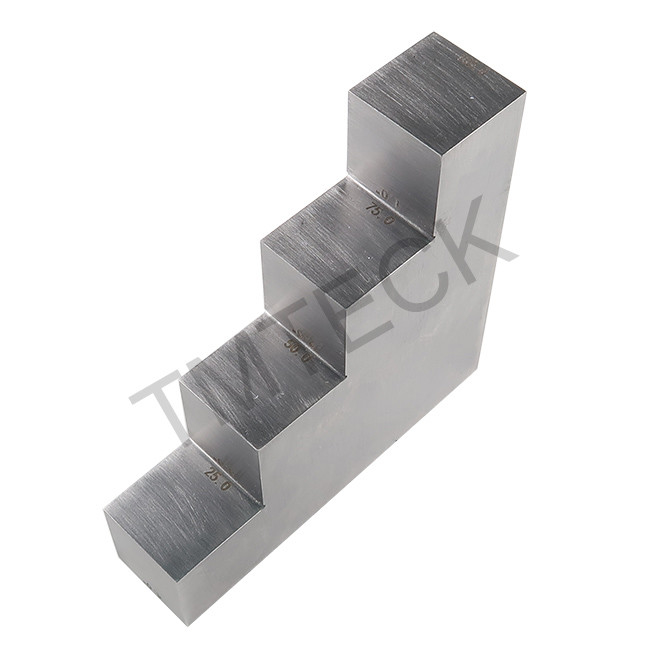

4 Step Thickness Meter Calibration Block 1018 Steel Metric 25 50 75 100mm
INCLUDED MAKER CERTIFICATION AND ABS PLASTIC CASE
MATERIAL :1018 Steel or 304 stainless steel
Thickness:25mm 50mm 75mm 100mm size: 80X20mm
Tipsy Step Block
Special Step Block for thickness and linearity calibration. This versatile block
contains eight (8) steps. Set it down on one side and get the 1.0, 2.0, 3.0 and 4.0″
steps. Then “Tip” it over and get the 1.5, 2.5, 3.5, and 4.5″ steps. Step faces
measures 1.00″ x 1.00″. Manufactured in accordance with TMTeck drawing . Step thickness tolerance is ±0.002″. Metric version with steps measuring
25.0, 37.5, 50.0, 62.5, 75.0, 87.5, 100.0, and 112.5mm also available. Step faces
on metric block measure 25.0mm x 25.0mm. Our new Universal Tipsy Block
design combines both measurement scales on one handy block. Stand it up to
calibrate on the 1.0, 2.0, 3.0, and 4.0″ thicknesses; then “Tip” it over to get the
25.0, 50.0, 75.0, and 100.0 mm steps.
Special Step Block for thickness and linearity calibration. This versatile block
contains eight (8) steps. Set it down on one side and get the 1.0, 2.0, 3.0 and 4.0″
steps. Then “Tip” it over and get the 1.5, 2.5, 3.5, and 4.5″ steps. Step faces
measures 1.00″ x 1.00″. Manufactured in accordance with TMTeck drawing . Step thickness tolerance is ±0.002″. Metric version with steps measuring
25.0, 37.5, 50.0, 62.5, 75.0, 87.5, 100.0, and 112.5mm also available. Step faces
on metric block measure 25.0mm x 25.0mm. Our new Universal Tipsy Block
design combines both measurement scales on one handy block. Stand it up to
calibrate on the 1.0, 2.0, 3.0, and 4.0″ thicknesses; then “Tip” it over to get the
25.0, 50.0, 75.0, and 100.0 mm steps.
Package including
1 unit 1018 Steel 4 steps Calibration Test Block
1 certification
1 suitcase
