TMTECK 10 Step Wedge NDT Ultrasonic Test Block
Detail Information
| Product: | Step Test Block | Material: | 1018 Steel, Stainless Steel |
|---|---|---|---|
| Step: | 10 | Type: | NDT Accessories |
| Version: | MM, INCH | Function: | Calibration,Testing Calibration Function |
| Package: | Plastic Carrying Case | Color: | Steel |
| High Light: |
Wedge ultrasonic test block10 Step ultrasonic test blockNDT Ultrasonic Test Block |
||
Product Description
10 Step test block Wedge Testing Ultrasonic Test Block 1018 steel/304 stainless steel Ultrasonic thickness gauge
Special step block for thickness and linearity calibration. There are three versions of the block available.
The 10-Step Inch version S-10-IN is made to TMTeck and goes from 0.100” to 1.000” in 0.100” increments. Face measures 0.8” x 0.8”.
The 10-Step Metric version S-10-MM goes from 1 to 10mm in 1mm increments.
The 10-Step Metric version S-10-MM-1 goes from 2.0 to 20.0mm in 2.0mm increments. Step face on both metric versions is 20mm x 20mm.
| Model | PIC | Description |
| 10 Step Test Block | ||

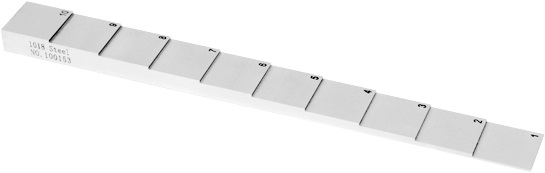

| S-10-MM |  |
MM,1018 steel, 10step test block Thickness:1mm/2mm/3mm/4mm/5mm/6mm/7mm/8mm/9mm/10mm size:200*20mm |
| S-10-MM-SS |  |
MM, 304 Stainless Steel, 7step test block Thickness:1mm/2mm/3mm/4mm/5mm/6mm/7mm/8mm/9mm/10mm size:200*20mm |

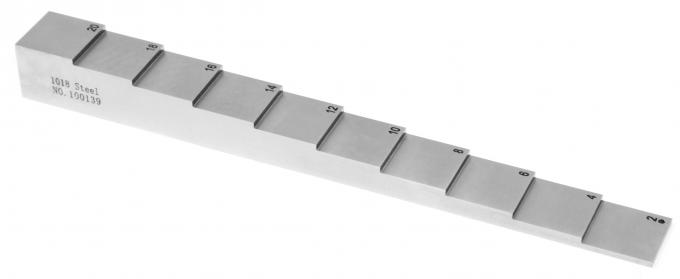

| S-10-MM-1 |  |
MM,1018 steel, 10step test block Thickness:2mm/4mm/6mm/8mm/10mm/12mm/14mm/16mm/18mm/20mm size:200*20mm |

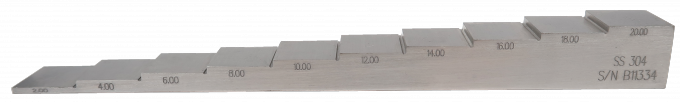

| S-10-MM-SS-1 |  |
MM, 304 Stainless Steel, 7step test block Thickness:2mm/4mm/6mm/8mm/10mm/12mm/14mm/16mm/18mm/20mm size:200*20mm |
| S-10-IN |  |
INCH,1018 steel, 10step test block thickness:0.100” 0.200” 0.300” 0.400” 0.500” 0.600” 0.700” 0.800” 0.900” 1.000” size:8”*0.8” |
