| Easiness to use, high performance, and the low price were achieved. |
 |

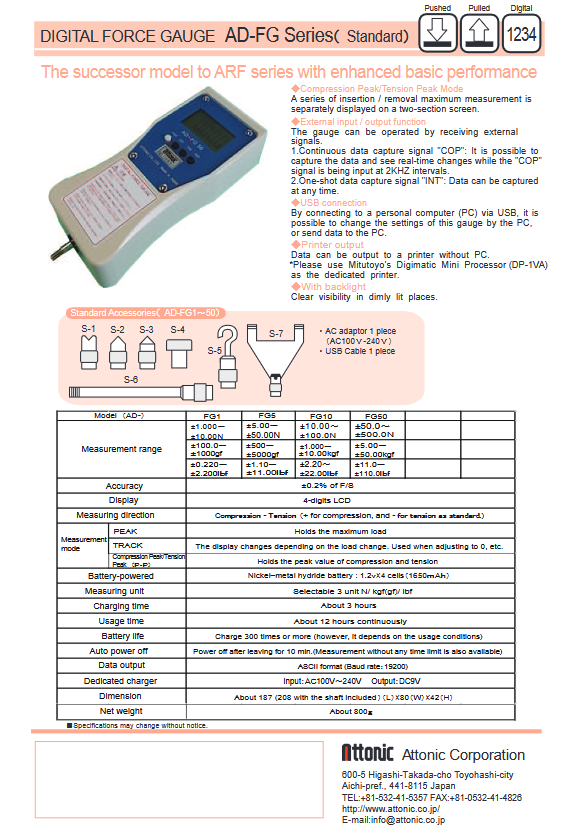

AD-FG series * standard type |
◆Compression Peak/Tension Peak Mode
A series of insertion / removal maximum measurement is separately displayed on a two-section screen.
◆External input / output function
The gauge can be operated by receiving external signals.
1.Continuous data capture signal “COP”: It is possible to capture the data and see real-time changes while the “COP” signal is being input at 2KHZ intervals.
2.One-shot data capture signal “INT”: Data can be captured at any time.
◆USB connection
By connecting to a personal computer (PC) via USB, it is possible to change the settings of this gauge by the PC, or send data to the PC.
◆Printer output
Data can be output to a printer without PC.
*Please use Mitutoyo’s Digimatic Mini Processor (DP-1VA) as the dedicated printer.
◆With backlight
Clear visibility in dimly lit places.- Push-pull load measurement can be measured.
In detail |
|
|
*Digital force gauge AD-FG100 and AD-FG500 with a load capacity of 1000N or more are currently under development. |
|
